GBS, GBS2, GBS4, GBS5

PCB Support - Spacer - Locking/Non Locking Bajonet with Fir Tree Mount

Back to
Sizes in mm

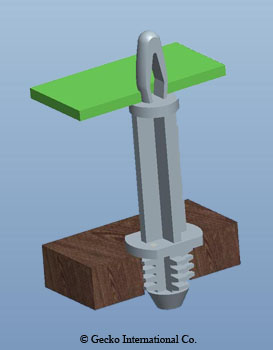

  • pcb-spacer-bhl-3-01.jpg

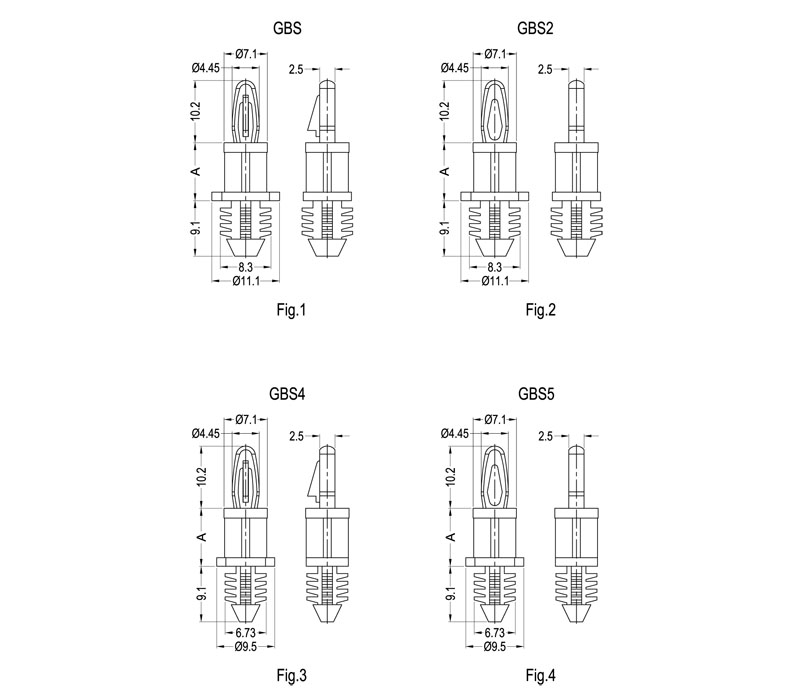

  • GBS&GBS2GBS4&GBS5 2D 503X350.jpg
P/N. Article No. Cross-Ref. Material Color A FIG Top Hole Bottom Hole Top Panel Thickness Bottom Panel Thickness Packing Unit PDF 3D
41010 GBS-3-66 BHL-3-01 PA66 UL94V2 Natural 4.8 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41565 GBS-3-V0 BHL-3-19 PA66 UL94V0 Natural 4.8 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41011 GBS-4-66 BHL-4-01 PA66 UL94V2 Natural 6.4 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41566 GBS-4-V0 BHL-4-19 PA66 UL94V0 Natural 6.4 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41012 GBS-6-66 BHL-6-01 PA66 UL94V2 Natural 9.5 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41567 GBS-6-V0 BHL-6-19 PA66 UL94V0 Natural 9.5 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41013 GBS-7-66 BHL-7-01 PA66 UL94V2 Natural 11.1 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41568 GBS-7-V0 BHL-7-19 PA66 UL94V0 Natural 11.1 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41014 GBS-8-66 BHL-8-01 PA66 UL94V2 Natural 12.7 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41569 GBS-8-V0 BHL-8-19 PA66 UL94V0 Natural 12.7 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41015 GBS-10-66 BHL-10-01 PA66 UL94V2 Natural 15.9 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41570 GBS-10-V0 BHL-10-19 PA66 UL94V0 Natural 15.9 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41016 GBS-12-66 BHL-12-01 PA66 UL94V2 Natural 19.1 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41571 GBS-12-V0 BHL-12-19 PA66 UL94V0 Natural 19.1 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41017 GBS-14-66 BHL-14-01 PA66 UL94V2 Natural 22.2 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41572 GBS-14-V0 BHL-14-19 PA66 UL94V0 Natural 22.2 1 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41113 GBS2-3-66 BHC-3-01 PA66 UL94V2 Natural 4.8 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41606 GBS2-3-V0 BHC-3-19 PA66 UL94V0 Natural 4.8 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41114 GBS2-4-66 BHC-4-01 PA66 UL94V2 Natural 6.4 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41607 GBS2-4-V0 BHC-4-19 PA66 UL94V0 Natural 6.4 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41115 GBS2-6-66 BHC-6-01 PA66 UL94V2 Natural 9.5 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41608 GBS2-6-V0 BHC-6-19 PA66 UL94V0 Natural 9.5 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41116 GBS2-7-66 BHC-7-01 PA66 UL94V2 Natural 11.1 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41609 GBS2-7-V0 BHC-7-19 PA66 UL94V0 Natural 11.1 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41117 GBS2-8-66 BHC-8-01 PA66 UL94V2 Natural 12.7 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41610 GBS2-8-V0 BHC-8-19 PA66 UL94V0 Natural 12.7 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41118 GBS2-10-66 BHC-10-01 PA66 UL94V2 Natural 15.9 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41611 GBS2-10-V0 BHC-10-19 PA66 UL94V0 Natural 15.9 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41119 GBS2-12-66 BHC-12-01 PA66 UL94V2 Natural 19.1 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41612 GBS2-12-V0 BHC-12-19 PA66 UL94V0 Natural 19.1 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41120 GBS2-14-66 BHC-14-01 PA66 UL94V2 Natural 22.2 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41613 GBS2-14-V0 BHC-14-19 PA66 UL94V0 Natural 22.2 2 4.0 +/- 0.08 7.92 +/- 0.08 1.57 6,4 (min) 1000
41127 GBS4-3-66 BHL1-3-01 PA66 UL94V2 Natural 4.8 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41620 GBS4-3-V0 BHL1-3-19 PA66 UL94V0 Natural 4.8 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41128 GBS4-4-66 BHL1-4-01 PA66 UL94V2 Natural 6.4 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41621 GBS4-4-V0 BHL1-4-19 PA66 UL94V0 Natural 6.4 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41129 GBS4-6-66 BHL1-6-01 PA66 UL94V2 Natural 9.5 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41622 GBS4-6-V0 BHL1-6-19 PA66 UL94V0 Natural 9.5 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41130 GBS4-7-66 BHL1-7-01 PA66 UL94V2 Natural 11.1 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41623 GBS4-7-V0 BHL1-7-19 PA66 UL94V0 Natural 11.1 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41131 GBS4-8-66 BHL1-8-01 PA66 UL94V2 Natural 12.7 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41624 GBS4-8-V0 BHL1-8-19 PA66 UL94V0 Natural 12.7 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41132 GBS4-10-66 BHL1-10-01 PA66 UL94V2 Natural 15.9 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41625 GBS4-10-V0 BHL1-10-19 PA66 UL94V0 Natural 15.9 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41133 GBS4-12-66 BHL1-12-01 PA66 UL94V2 Natural 19.1 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41626 GBS4-12-V0 BHL1-12-19 PA66 UL94V0 Natural 19.1 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41134 GBS4-14-66 BHL1-14-01 PA66 UL94V2 Natural 22.2 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41627 GBS4-14-V0 BHL1-14-19 PA66 UL94V0 Natural 22.2 3 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41135 GBS5-3-66 BHC1-3-01 PA66 UL94V2 Natural 4.8 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41628 GBS5-3-V0 BHC1-3-19 PA66 UL94V0 Natural 4.8 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42751 GBS5-3-66B BHC1-3-01BK PA66 UL94V2 Black 4.8 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42761 GBS5-3-BV0 BHC1-3-19BK PA66 UL94V0 Black 4.8 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41136 GBS5-4-66 BHC1-4-01 PA66 UL94V2 Natural 6.4 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41629 GBS5-4-V0 BHC1-4-19 PA66 UL94V0 Natural 6.4 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42754 GBS5-4-66B BHC1-4-01BK PA66 UL94V2 Black 6.4 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42762 GBS5-4-BV0 BHC1-4-19BK PA66 UL94V0 Black 6.4 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41137 GBS5-6-66 BHC1-6-01 PA66 UL94V2 Natural 9.5 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41630 GBS5-6-V0 BHC1-6-19 PA66 UL94V0 Natural 9.5 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42755 GBS5-6-66B BHC1-6-01BK PA66 UL94V2 Black 9.5 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42763 GBS5-6-BV0 BHC1-6-19BK PA66 UL94V0 Black 9.5 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41138 GBS5-7-66 BHC1-7-01 PA66 UL94V2 Natural 11.1 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41631 GBS5-7-V0 BHC1-7-19 PA66 UL94V0 Natural 11.1 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42756 GBS5-7-66B BHC1-7-01BK PA66 UL94V2 Black 11.1 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42764 GBS5-7-BV0 BHC1-7-19BK PA66 UL94V0 Black 11.1 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41139 GBS5-8-66 BHC1-8-01 PA66 UL94V2 Natural 12.7 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41632 GBS5-8-V0 BHC1-8-19 PA66 UL94V0 Natural 12.7 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42757 GBS5-8-66B BHC1-8-01BK PA66 UL94V2 Black 12.7 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42765 GBS5-8-BV0 BHC1-8-19BK PA66 UL94V0 Black 12.7 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41140 GBS5-10-66 BHC1-10-01 PA66 UL94V2 Natural 15.9 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41633 GBS5-10-V0 BHC1-10-19 PA66 UL94V0 Natural 15.9 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42758 GBS5-10-66B BHC1-10-01BK PA66 UL94V2 Black 15.9 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42766 GBS5-10-BV0 BHC1-10-19BK PA66 UL94V0 Black 15.9 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41141 GBS5-12-66 BHC1-12-01 PA66 UL94V2 Natural 19.1 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41634 GBS5-12-V0 BHC1-12-19 PA66 UL94V0 Natural 19.1 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42759 GBS5-12-66B BHC1-12-01BK PA66 UL94V2 Black 19.1 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42767 GBS5-12-BV0 BHC1-12-19BK PA66 UL94V0 Black 19.1 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41142 GBS5-14-66 BHC1-14-01 PA66 UL94V2 Natural 22.2 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
41635 GBS5-14-V0 BHC1-14-19 PA66 UL94V0 Natural 22.2 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42760 GBS5-14-66B BHC1-14-01BK PA66 UL94V2 Black 22.2 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
42768 GBS5-14-BV0 BHC1-14-19BK PA66 UL94V0 Black 22.2 4 4.0 +/- 0.08 6.35 +/- 0.08 1.57 6,4 (min) 1000
