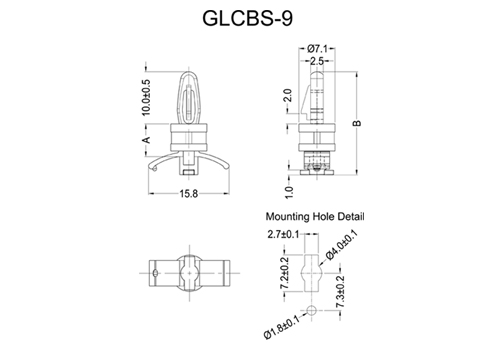

GLCBS-9
PCB Support - Spacer, Bayonet, Locking, Quarter Turn
| P/N. | Article No. | Cross-Ref. |
Material |
Color |
A | B |
Top Hole | Bottom Hole |
Top Panel Thickness | Bottom Panel Thickness |
Packing Unit |
PDF |
3D |
| 43623 | GLCBS-9-3-01 |
LCBS-9-3-01 |
PA66 UL94V2 |
Natural |
4.8 | 18.6 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43635 | GLCBS-9-3-19 |
LCBS-9-3-19 |
PA66 UL94V0 |
Natural |
4.8 | 18.6 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43588 | GLCBS-9-4-01 |
LCBS-9-4-01 |
PA66 UL94V2 |
Natural |
6.4 | 20.2 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43592 | GLCBS-9-4-19 |
LCBS-9-4-19 |
PA66 UL94V0 |
Natural |
6.4 | 20.2 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43624 | GLCBS-9-5-01 |
LCBS-9-5-01 |
PA66 UL94V2 |
Natural |
7.9 | 21.7 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43636 | GLCBS-9-5-19 |
LCBS-9-5-19 |
PA66 UL94V0 |
Natural |
7.9 | 21.7 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43625 | GLCBS-9-6-01 |
LCBS-9-6-01 |
PA66 UL94V2 |
Natural |
9.5 | 23.3 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43637 | GLCBS-9-6-19 |
LCBS-9-6-19 |
PA66 UL94V0 |
Natural |
9.5 | 23.3 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43626 | GLCBS-9-7-01 |
LCBS-9-7-01 |
PA66 UL94V2 |
Natural |
11.1 | 24.9 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43638 | GLCBS-9-7-19 |
LCBS-9-7-19 |
PA66 UL94V0 |
Natural |
11.1 | 24.9 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43627 | GLCBS-9-8-01 |
LCBS-9-8-01 |
PA66 UL94V2 |
Natural |
12.7 | 26.5 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43639 | GLCBS-9-8-19 |
LCBS-9-8-19 |
PA66 UL94V0 |
Natural |
12.7 | 26.5 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43628 | GLCBS-9-10-01 |
LCBS-9-10-01 |
PA66 UL94V2 |
Natural |
15.9 | 29.7 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43640 | GLCBS-9-10-19 |
LCBS-9-10-19 |
PA66 UL94V0 |
Natural |
15.9 | 29.7 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43629 | GLCBS-9-12-01 |
LCBS-9-12-01 |
PA66 UL94V2 |
Natural |
19.1 | 32.9 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43641 | GLCBS-9-12-19 |
LCBS-9-12-19 |
PA66 UL94V0 |
Natural |
19.1 | 32.9 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43630 | GLCBS-9-14-01 |
LCBS-9-14-01 |
PA66 UL94V2 |
Natural |
22.2 | 36.0 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43642 | GLCBS-9-14-19 |
LCBS-9-14-19 |
PA66 UL94V0 |
Natural |
22.2 | 36.0 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43631 | GLCBS-9-16-01 |
LCBS-9-16-01 |
PA66 UL94V2 |
Natural |
25.4 | 39.2 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43643 | GLCBS-9-16-19 |
LCBS-9-16-19 |
PA66 UL94V0 |
Natural |
25.4 | 39.2 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43632 | GLCBS-9-18-01 |
LCBS-9-18-01 |
PA66 UL94V2 |
Natural |
28.6 | 42.4 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43644 | GLCBS-9-18-19 |
LCBS-9-18-19 |
PA66 UL94V0 |
Natural |
28.6 | 42.4 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43633 | GLCBS-9-20-01 |
LCBS-9-20-01 |
PA66 UL94V2 |
Natural |
31.8 | 45.6 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43645 | GLCBS-9-20-19 |
LCBS-9-20-19 |
PA66 UL94V0 |
Natural |
31.8 | 45.6 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43634 | GLCBS-9-22-01 |
LCBS-9-22-01 |
PA66 UL94V2 |
Natural |
34.9 | 48.7 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43646 | GLCBS-9-22-19 |
LCBS-9-22-19 |
PA66 UL94V0 |
Natural |
34.9 | 48.7 |
4.0 +/- 0.08 | PDF |
1.6 | 0.8-1.6 |
1000 |
|
|
