GRLCBSA

PCB Support - Spacer - Locking Arrowhead, Reverse Locking Support, Push Spacer

Back to

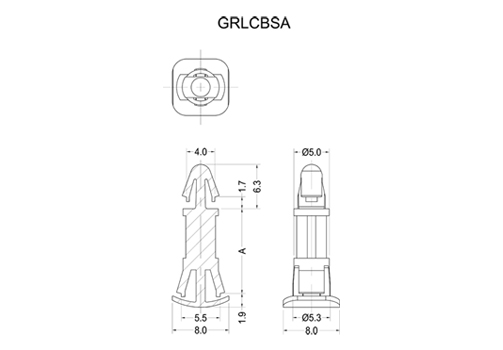

Sizes in mm
  • GRLCBSA-600X600.jpg
P/N. Article No. Cross-Ref. Material Color A FIG Top Hole Bottom Hole Panel Thickness Top Panel Thickness Bottom Panel Thickness Packing Unit PDF 3D
43616 GRLCBSA-5-01 RLCBSA-5-01 PA66 UL94V2 Natural 5.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43617 GRLCBSA-6-01 RLCBSA-6-01 PA66 UL94V2 Natural 6.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43618 GRLCBSA-8-01 RLCBSA-8-01 PA66 UL94V2 Natural 8.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43619 GRLCBSA-10-01 RLCBSA-10-01 PA66 UL94V2 Natural 10.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43620 GRLCBSA-12-01 RLCBSA-12-01 PA66 UL94V2 Natural 12.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43621 GRLCBSA-14-01 RLCBSA-14-01 PA66 UL94V2 Natural 14.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43649 GRLCBSA-5-19 RLCBSA-5-19 PA66 UL94V0 Natural 5.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43650 GRLCBSA-6-19 RLCBSA-6-19 PA66 UL94V0 Natural 6.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43651 GRLCBSA-8-19 RLCBSA-8-19 PA66 UL94V0 Natural 8.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43652 GRLCBSA-10-19 RLCBSA-10-19 PA66 UL94V0 Natural 10.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43653 GRLCBSA-12-19 RLCBSA-12-19 PA66 UL94V0 Natural 12.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
43654 GRLCBSA-14-19 RLCBSA-14-19 PA66 UL94V0 Natural 14.0 - 4.0 +/- 0.08 5.5 +/- 0.08 - 1,6 0.5-1.0 1000
