GSCBSP

PCB Support - Spacer, Locking Bayonet, Flat Rest, Hexagonal

Back to

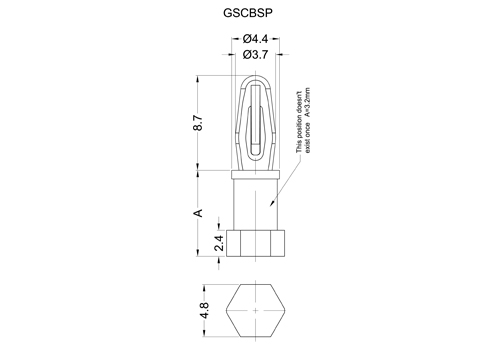

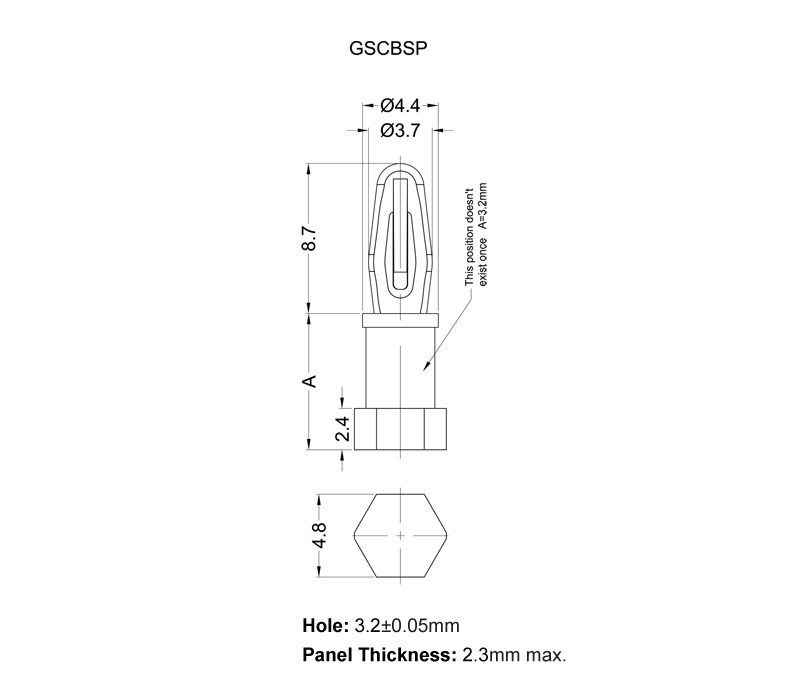

Sizes in mm
  • GSCBSP update 600X600.jpg
P/N. Article No. Cross-Ref. Material Color A Hole Panel Thickness Packing Unit PDF 3D
43728 GSCBSP-2-66 - PA66 UL94V2 Natural 3,2 3.2 +/- 0.05 Max 2.3 1000
43729 GSCBSP-4-66 - PA66 UL94V2 Natural 6,4 3.2 +/- 0.05 Max 2.3 1000
43730 GSCBSP-5-66 - PA66 UL94V2 Natural 7,9 3.2 +/- 0.05 Max 2.3 1000
43731 GSCBSP-6-66 - PA66 UL94V2 Natural 9,5 3.2 +/- 0.05 Max 2.3 1000
43732 GSCBSP-7-66 - PA66 UL94V2 Natural 11,1 3.2 +/- 0.05 Max 2.3 1000
43733 GSCBSP-8-66 - PA66 UL94V2 Natural 12,7 3.2 +/- 0.05 Max 2.3 1000
43734 GSCBSP-9-66 - PA66 UL94V2 Natural 14,3 3.2 +/- 0.05 Max 2.3 1000
43735 GSCBSP-10-66 - PA66 UL94V2 Natural 15,9 3.2 +/- 0.05 Max 2.3 1000
43736 GSCBSP-12-66 - PA66 UL94V2 Natural 19,1 3.2 +/- 0.05 Max 2.3 1000
43737 GSCBSP-2-V0 - PA66 UL94V0 Natural 3,2 3.2 +/- 0.05 Max 2.3 1000
43738 GSCBSP-4-V0 - PA66 UL94V0 Natural 6,4 3.2 +/- 0.05 Max 2.3 1000
43739 GSCBSP-5-V0 - PA66 UL94V0 Natural 7,9 3.2 +/- 0.05 Max 2.3 1000
43740 GSCBSP-6-V0 - PA66 UL94V0 Natural 9,5 3.2 +/- 0.05 Max 2.3 1000
43741 GSCBSP-7-V0 - PA66 UL94V0 Natural 11,1 3.2 +/- 0.05 Max 2.3 1000
43742 GSCBSP-8-V0 - PA66 UL94V0 Natural 12,7 3.2 +/- 0.05 Max 2.3 1000
43743 GSCBSP-9-V0 - PA66 UL94V0 Natural 14,3 3.2 +/- 0.05 Max 2.3 1000
43744 GSCBSP-10-V0 - PA66 UL94V0 Natural 15,9 3.2 +/- 0.05 Max 2.3 1000
43745 GSCBSP-12-V0 - PA66 UL94V0 Natural 19,1 3.2 +/- 0.05 Max 2.3 1000
43746 GSCBSP-2-66B - PA66 UL94V2 Black 3,2 3.2 +/- 0.05 Max 2.3 1000
43747 GSCBSP-4-66B - PA66 UL94V2 Black 6,4 3.2 +/- 0.05 Max 2.3 1000
43748 GSCBSP-5-66B - PA66 UL94V2 Black 7,9 3.2 +/- 0.05 Max 2.3 1000
43749 GSCBSP-6-66B - PA66 UL94V2 Black 9,5 3.2 +/- 0.05 Max 2.3 1000
43750 GSCBSP-7-66B - PA66 UL94V2 Black 11,1 3.2 +/- 0.05 Max 2.3 1000
43751 GSCBSP-8-66B - PA66 UL94V2 Black 12,7 3.2 +/- 0.05 Max 2.3 1000
43752 GSCBSP-9-66B - PA66 UL94V2 Black 14,3 3.2 +/- 0.05 Max 2.3 1000
43753 GSCBSP-10-66B - PA66 UL94V2 Black 15,9 3.2 +/- 0.05 Max 2.3 1000
43754 GSCBSP-12-66B - PA66 UL94V2 Black 19,1 3.2 +/- 0.05 Max 2.3 1000
43755 GSCBSP-2-BV0 - PA66 UL94V0 Black 3,2 3.2 +/- 0.05 Max 2.3 1000
43756 GSCBSP-4-BV0 - PA66 UL94V0 Black 6,4 3.2 +/- 0.05 Max 2.3 1000
43757 GSCBSP-5-BV0 - PA66 UL94V0 Black 7,9 3.2 +/- 0.05 Max 2.3 1000
43758 GSCBSP-6-BV0 - PA66 UL94V0 Black 9,5 3.2 +/- 0.05 Max 2.3 1000
43759 GSCBSP-7-BV0 - PA66 UL94V0 Black 11,1 3.2 +/- 0.05 Max 2.3 1000
43760 GSCBSP-8-BV0 - PA66 UL94V0 Black 12,7 3.2 +/- 0.05 Max 2.3 1000
43761 GSCBSP-9-BV0 - PA66 UL94V0 Black 14,3 3.2 +/- 0.05 Max 2.3 1000
43762 GSCBSP-10-BV0 - PA66 UL94V0 Black 15,9 3.2 +/- 0.05 Max 2.3 1000
43763 GSCBSP-12-BV0 - PA66 UL94V0 Black 19,1 3.2 +/- 0.05 Max 2.3 1000
