GPAKKL
Cable Clamp, Wire Saddle, Wire Harness Clip, Snap In, PA66 UL94V2, PA66 UL94V0
| P/N. | Article No. | Cross-Ref. |
Material |
Color |
A | B | C | D |

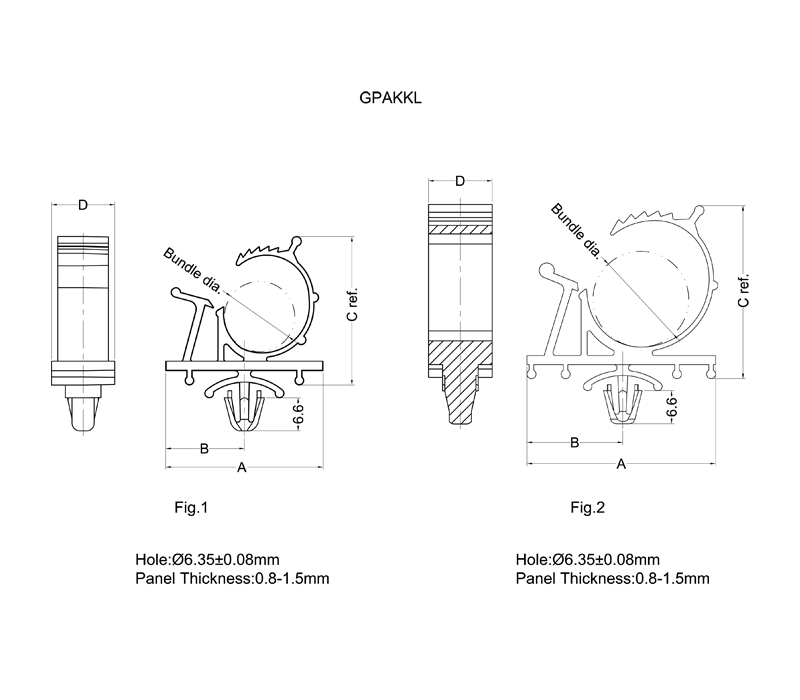

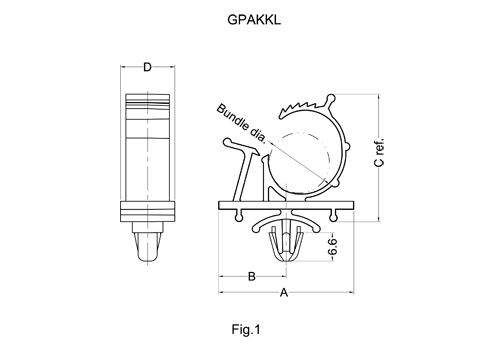

FIG |
Bundle Ø |
Hole |
Panel Thickness |
Packing Unit |
PDF |
3D |
| 61355 | GPAKKL-3140-01 |
PAKKL-3140-01 |
PA66 UL94V2 |
Natural |
19.1 | 9.7 | 23.8 | 8.9 |
1 |
7.9-10.2 |
6.35 +/- 0.08 |
0.8-1.5 |
1000 |
|
|
| 61354 | GPAKKL-3140-19 |
PAKKL-3140-19 |
PA66 UL94V0 |
Natural |
19.1 | 9.7 | 23.8 | 8.9 |
1 |
7.9-10.2 |
6.35 +/- 0.08 |
0.8-1.5 |
1000 |
|
|
| 60591 | GPAKKL-4756-01 |
PAKKL-4756-01 |
PA66 UL94V2 |
Natural |
31.4 | 15.7 | 29.6 | 12.6 |
1 |
11.9-14.0 |
6.35 +/- 0.08 |
0.8-1.5 |
500 |
|
|
| 60810 | GPAKKL-4756-19 |
PAKKL-4756-19 |
PA66 UL94V0 |
Natural |
31.4 | 15.7 | 29.6 | 12.6 |
1 |
11.9-14.0 |
6.35 +/- 0.08 |
0.8-1.5 |
500 |
|
|
| 60414 | GPAKKL-5775-01 |
PAKKL-5775-01 |
PA66 UL94V2 |
Natural |
37.6 | 19.1 | 34.5 | 12.7 |
2 |
14.7-19.1 |
6.35 +/- 0.08 |
0.8-1.5 |
200 |
|
|
| 60871 | GPAKKL-5775-19 |
PAKKL-5775-19 |
PA66 UL94V0 |
Natural |
37.6 | 19.1 | 34.5 | 12.7 |
2 |
14.7-19.1 |
6.35 +/- 0.08 |
0.8-1.5 |
200 |
|
|
