GF-123, GF124, GF126, GF130
Soft Fast Foot, Quick Assembly, Push-Fit Feet, Rivet Foot, Push Rivet, Hole 7.6-8.1, TPV UL94HB, PP UL94HB
| P/N. | Article No. | Cross-Ref. |
Material | Material I |
Color |
A | B | C |

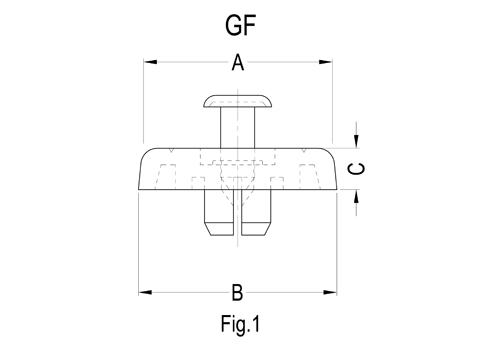

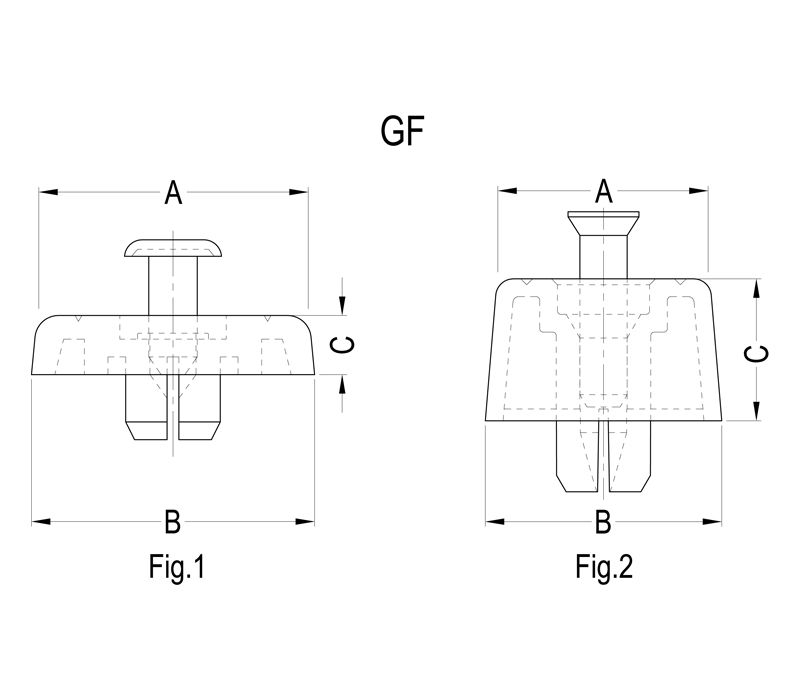

FIG |
Hole |
Panel Thickness |
Packing Unit |
PDF |
3D |
| 30237 | GF-130 |
- |
TPV UL94HB | PP UL94HB |
Black |
23.0 | 25.0 | 5.0 |
1 |
7.6-7.85 |
0.8-1.5 |
500 |
|
|
| 30064 | GF-123 |
SFF-023 |
TPV UL94HB | PP UL94HB |
Black |
23.0 | 25.0 | 5.0 |
1 |
8.0-8.1 |
0.8-1.5 |
500 |
|
|
| 30065 | GF-123PP |
- |
PP UL94HB | - |
Black |
23.0 | 25.0 | 5.0 |
1 |
8.0-8.1 |
0.8-1.5 |
500 |
|
|
| 30066 | GF-124 |
- |
TPV UL94HB | PP UL94HB |
Black |
18.0 | 20.0 | 12.0 |
2 |
8.0-8.1 |
0.5-1.2 |
500 |
|
|
| 30068 | GF-124A4 |
- |
TPV + PP UL94HB | PP UL94HB |
Black |
18.0 | 20.0 | 12.0 |
2 |
8.0-8.1 |
0.5-1.2 |
500 |
|
|
| 30067 | GF-124PP |
- |
PP UL94HB | - |
Black |
18.0 | 20.0 | 12.0 |
2 |
8.0-8.1 |
0.5-1.2 |
500 |
|
|
| 30296 | GF-126 |
- |
TPV UL94HB | PP UL94HB |
Black |
18.0 | 20.0 | 18.0 |
2 |
8.0-8.1 |
0.5-1.2 |
500 |
|
|
| 30070 | GF-126A4 |
- |
TPV + PP UL94HB | PP UL94HB |
Black |
18.0 | 20.0 | 18.0 |
2 |
8.0-8.1 |
0.5-1.2 |
500 |
|
|
| 30069 | GF-126PP |
- |
PP UL94HB | - |
Black |
18.0 | 20.0 | 18.0 |
2 |
8.0-8.1 |
0.5-1.2 |
500 |
|
|
