GA-CR&G490
Blind Rivet, Hole 4.0-4.1, Grip Range 1.5-4.5, PA6 UL94V2, POM UL94HB
| P/N. | Article No. |
Material | Material I |
Color |

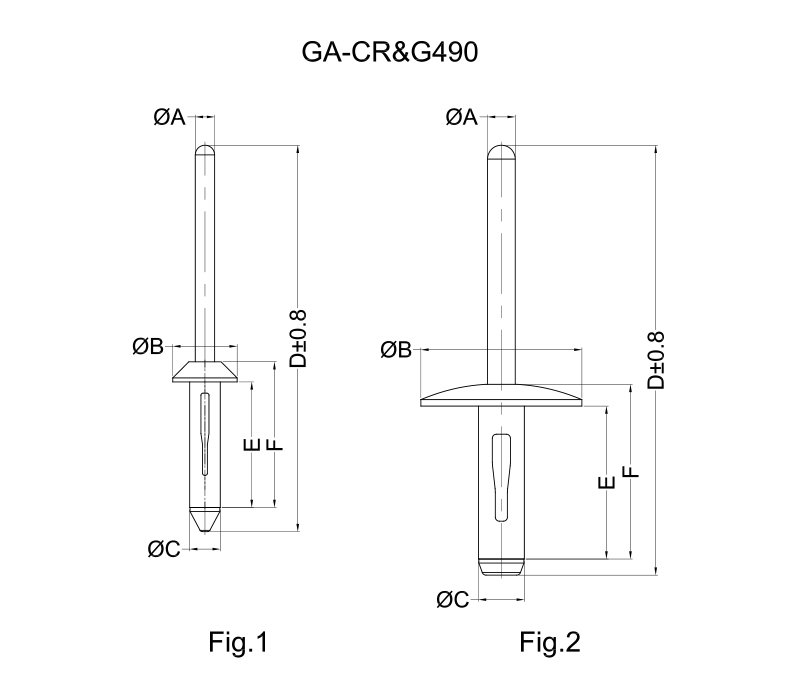

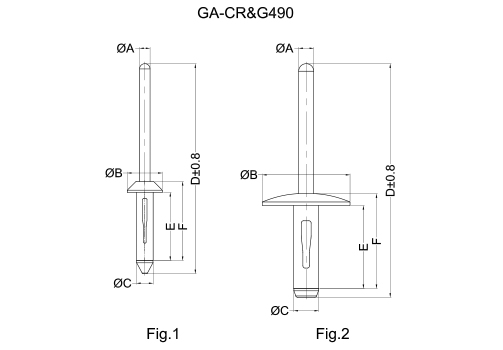

A | B | C | D | E | F |
FIG |
Hole |
Panel Thickness |
Packing Unit |
PDF |
3D |
| 20890 | G49060810 |
PA6 UL94V2 | POM UL94HB |
Black |
2.4 | 8 | 3.9 | 48 | 15.6 | 18.1 |
1 |
4.0-4.1 |
1.5-4.5 |
1000 |
|
|
| 20699 | G4907293A |
PA6 UL94V2 | POM UL94HB |
Black |
2.9 | 8.9 | 4.9 | 46.6 | 15 | 16.8 |
1 |
5.0-5.1 |
3.0-4.0 |
1000 |
|
|
| 20700 | G4907293B |
PA6 UL94V2 | POM UL94HB |
Black |
2.9 | 12 | 4.9 | 47.8 | 17 | 18.8 |
1 |
5.0-5.1 |
3.0-6.0 |
1000 |
|
|
| 20797 | G4907293F |
PA6 UL94V2 | POM UL94HB |
Black |
2.9 | 12 | 4.9 | 49.8 | 19 | 20.8 |
1 |
5.0-5.1 |
3.0-7.2 |
1000 |
|
|
| 20701 | G4907293C |
PA6 UL94V2 | POM UL94HB |
Black |
2.9 | 12 | 4.9 | 51.7 | 22 | 23.8 |
1 |
5.0-5.1 |
6.0-10.0 |
1000 |
|
|
| 20839 | GA-CR50-48-01 |
PA6 UL94V2 | POM UL94HB |
Black |
2.9 | 11.8 | 4.9 | 47.3 | 15.7 | 18.9 |
1 |
5.1-5.2 |
2.0-5.0 |
1000 |
|
|
| 20838 | GA-CR50-48B-01 |
PA6 UL94V2 | POM UL94HB |
Black |
2.9 | 12.3 | 4.9 | 47.3 | 17.2 | 19.1 |
1 |
5.1-5.2 |
3.1-5.5 |
1000 |
|
|
| 20889 | G49052980 |
PA6 UL94V2 | POM UL94HB |
Black |
3.5 | 20 | 5.7 | 53.4 | 19 | 21.7 |
2 |
5.8-5.9 |
3.5-5.5 |
1000 |
|
|
| 20706 | G4907293D |
PA6 UL94V2 | POM UL94HB |
Black |
3.9 | 13 | 5.9 | 54.6 | 25 | 27.5 |
1 |
6.0-6.1 |
4.0-8.5 |
1000 |
|
|
| 20891 | GA-CR58-54-01 |
PA6 UL94V2 | POM UL94HB |
Black |
3.9 | 16.9 | 6 | 54.5 | 25.5 | 28 |
1 |
6.1-6.2 |
4.0-7.9 |
1000 |
|
|
| 20727 | GA-CR62-54B-01 |
PA6 UL94V2 | POM UL94HB |
Black |
3.9 | 17 | 6.2 | 58.3 | 28.8 | 31.3 |
1 |
6.3-6.4 |
7.5-11.5 |
1000 |
|
|
| 20708 | G4907293E |
PA6 UL94V2 | POM UL94HB |
Black |
3.9 | 17 | 6.3 | 45.6 | 15 | 17.5 |
1 |
6.4-6.5 |
4.0-6.0 |
1000 |
|
|
| 20888 | G49071780 |
PA6 UL94V2 | POM UL94HB |
Black |
3.8 | 13 | 6.5 | 47.1 | 17.5 | 20 |
1 |
6.6-6.7 |
2.5-5.0 |
1000 |
|
|
