GLCBSC4, GLCBSC13, GLCBSC15

PCB Support - Spacer - Locking/Non Locking Bayonet, Reverse Locking Support, Push Spacer

Sizes in mm

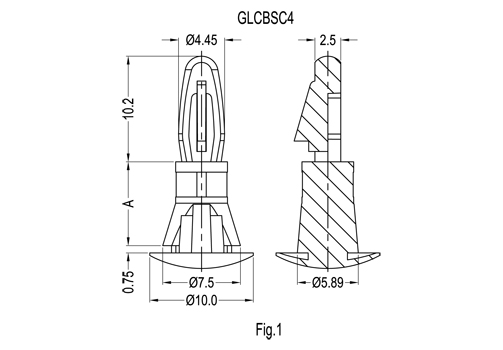

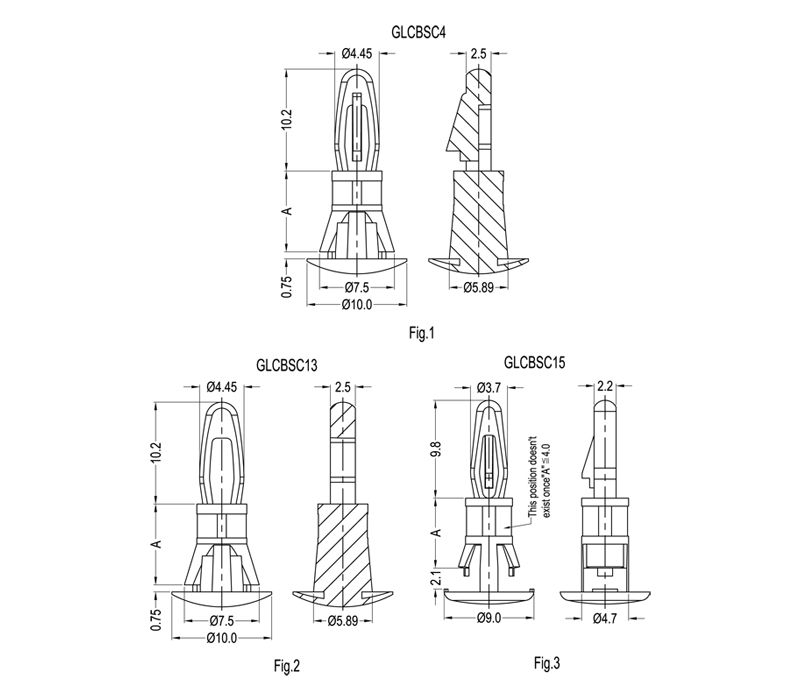

P/N.	Article No.	Cross-Ref.	Material	Color	A	FIG	Top Hole	Bottom Hole	Top Panel Thickness	Bottom Panel Thickness	Packing Unit	PDF	3D
40893	GLCBSC4-3-66	CRLCBSR-3-01	PA66 UL94V2	Natural	4.8	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41450	GLCBSC4-3-V0	CRLCBSR-3-19	PA66 UL94V0	Natural	4.8	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41456	GLCBSC4-3-66B	CRLCBSR-3-01BK	PA66 UL94V2	Black	4.8	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
40894	GLCBSC4-4-66	CRLCBSR-4-01	PA66 UL94V2	Natural	6.4	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41451	GLCBSC4-4-V0	CRLCBSR-4-19	PA66 UL94V0	Natural	6.4	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41457	GLCBSC4-4-66B	CRLCBSR-4-01BK	PA66 UL94V2	Black	6.4	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
40895	GLCBSC4-5-66	CRLCBSR-5-01	PA66 UL94V2	Natural	7.9	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41452	GLCBSC4-5-V0	CRLCBSR-5-19	PA66 UL94V0	Natural	7.9	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41458	GLCBSC4-5-66B	CRLCBSR-5-01BK	PA66 UL94V2	Black	7.9	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
40896	GLCBSC4-6-66	CRLCBSR-6-01	PA66 UL94V2	Natural	9.5	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41453	GLCBSC4-6-V0	CRLCBSR-6-19	PA66 UL94V0	Natural	9.5	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41459	GLCBSC4-6-66B	CRLCBSR-6-01BK	PA66 UL94V2	Black	9.5	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
40897	GLCBSC4-8-66	CRLCBSR-8-01	PA66 UL94V2	Natural	12.7	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41454	GLCBSC4-8-V0	CRLCBSR-8-19	PA66 UL94V0	Natural	12.7	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41460	GLCBSC4-8-66B	CRLCBSR-8-01BK	PA66 UL94V2	Black	12.7	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42023	GLCBSC4-10-66	CRLCBSR-10-01	PA66 UL94V2	Natural	15.9	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42024	GLCBSC4-10-V0	CRLCBSR-10-19	PA66 UL94V0	Natural	15.9	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
40615	GLCBSC4-10-66B	CRLCBSR-10-01BK	PA66 UL94V2	Black	15.9	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
40898	GLCBSC4-12-66	CRLCBSR-12-01	PA66 UL94V2	Natural	19.1	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41455	GLCBSC4-12-V0	CRLCBSR-12-19	PA66 UL94V0	Natural	19.1	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41461	GLCBSC4-12-66B	CRLCBSR-12-01BK	PA66 UL94V2	Black	19.1	1	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41378	GLCBSC13-3-66	-	PA66 UL94V2	Natural	4.8	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42080	GLCBSC13-3-V0	-	PA66 UL94V0	Natural	4.8	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41379	GLCBSC13-4-66	-	PA66 UL94V2	Natural	6.4	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42450	GLCBSC13-4-V0	-	PA66 UL94V0	Natural	6.4	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41380	GLCBSC13-5-66	-	PA66 UL94V2	Natural	7.9	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42451	GLCBSC13-5-V0	-	PA66 UL94V0	Natural	7.9	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41381	GLCBSC13-6-66	-	PA66 UL94V2	Natural	9.5	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42452	GLCBSC13-6-V0	-	PA66 UL94V0	Natural	9.5	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41382	GLCBSC13-8-66	-	PA66 UL94V2	Natural	12.7	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42453	GLCBSC13-8-V0	-	PA66 UL94V0	Natural	12.7	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42545	GLCBSC13-10-66	-	PA66 UL94V2	Natural	15.9	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42546	GLCBSC13-10-V0	-	PA66 UL94V0	Natural	15.9	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
41383	GLCBSC13-12-66	-	PA66 UL94V2	Natural	19.1	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
42454	GLCBSC13-12-V0	-	PA66 UL94V0	Natural	19.1	2	4.0 +/- 0.08	6.0 +/- 0.08	1.6	0.8-1.2	1000
43421	GLCBSC15-3.2B-HB	-	PA66 UL94HB	Black	3.2	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43422	GLCBSC15-4B-HB	-	PA66 UL94HB	Black	4.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43423	GLCBSC15-5B-HB	-	PA66 UL94HB	Black	5.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43424	GLCBSC15-6B-HB	-	PA66 UL94HB	Black	6.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43425	GLCBSC15-7B-HB	-	PA66 UL94HB	Black	7.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43426	GLCBSC15-8B-HB	-	PA66 UL94HB	Black	8.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43427	GLCBSC15-9B-HB	-	PA66 UL94HB	Black	9.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43428	GLCBSC15-10B-HB	-	PA66 UL94HB	Black	10.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43429	GLCBSC15-11B-HB	-	PA66 UL94HB	Black	11.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43430	GLCBSC15-12B-HB	-	PA66 UL94HB	Black	12.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43431	GLCBSC15-13B-HB	-	PA66 UL94HB	Black	13.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43432	GLCBSC15-14B-HB	-	PA66 UL94HB	Black	14.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
43433	GLCBSC15-15B-HB	-	PA66 UL94HB	Black	15.0	3	3.2 +/- 0.08	5.0 +/- 0.08	1.5	2.0	1000
