GCPS
PCB Support - Spacer - Locking Arrowhead, Reverse Locking Support, Push Spacer
| P/N. | Article No. | Cross-Ref. |
Material |
Color |
A |

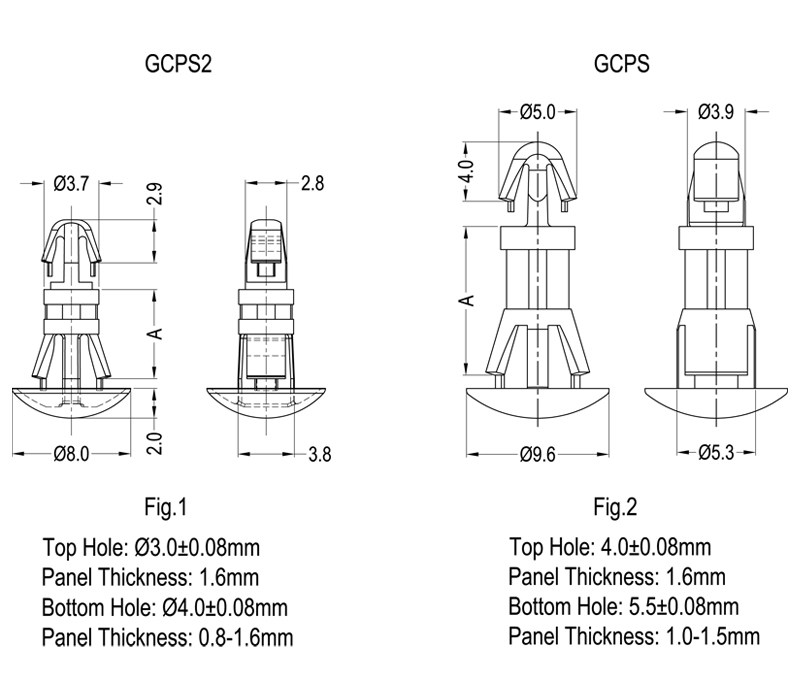

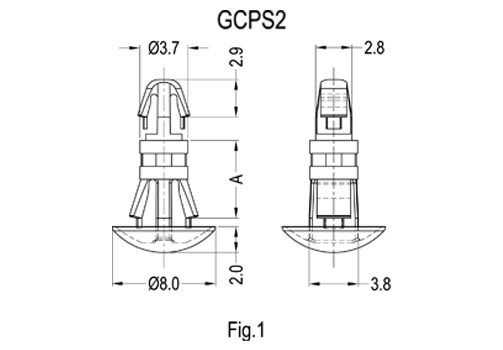

FIG |
Top Hole | Bottom Hole |
Top Panel Thickness | Bottom Panel Thickness |
Packing Unit |
PDF |
3D |
| 43919 | GCPS2-4M |
CBRLDS415A |
PA66 UL94V2 |
Natural |
4.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43920 | GCPS2-5M |
CBRLDS420A |
PA66 UL94V2 |
Natural |
5.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43921 | GCPS2-6M |
CBRLDS425A |
PA66 UL94V2 |
Natural |
6.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43922 | GCPS2-7M |
CBRLDS430A |
PA66 UL94V2 |
Natural |
7.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43923 | GCPS2-8M |
CBRLDS435A |
PA66 UL94V2 |
Natural |
8.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43924 | GCPS2-9M |
CBRLDS440A |
PA66 UL94V2 |
Natural |
9.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43925 | GCPS2-10M |
CBRLDS445A |
PA66 UL94V2 |
Natural |
10.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43926 | GCPS2-12M |
CBRLDS450A |
PA66 UL94V2 |
Natural |
12.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43927 | GCPS2-14M |
CBRLDS455A |
PA66 UL94V2 |
Natural |
14.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 43928 | GCPS2-16M |
CBRLDS460A |
PA66 UL94V2 |
Natural |
16.0 |
1 |
3.0 +/- 0.08 | 4.0 +/- 0.08 |
1.6 | 0.8-1.6 |
1000 |
|
|
| 40878 | GCPS-5 |
100305200002 |
PA66 UL94V2 |
Natural |
5.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 40879 | GCPS-6 |
100306000002 |
PA66 UL94V2 |
Natural |
6.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 40880 | GCPS-8 |
100308000002 |
PA66 UL94V2 |
Natural |
8.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 40881 | GCPS-10 |
100310000002 |
PA66 UL94V2 |
Natural |
10.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 40882 | GCPS-12 |
100312000002 |
PA66 UL94V2 |
Natural |
12.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 40883 | GCPS-14 |
- |
PA66 UL94V2 |
Natural |
14.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 40884 | GCPS-16 |
100316000002 |
PA66 UL94V2 |
Natural |
16.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 40885 | GCPS-18 |
- |
PA66 UL94V2 |
Natural |
18.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 40886 | GCPS-20 |
100320000002 |
PA66 UL94V2 |
Natural |
20.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 40887 | GCPS-22 |
- |
PA66 UL94V2 |
Natural |
22.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
| 41327 | GCPS-24 |
100324000002 |
PA66 UL94V2 |
Natural |
24.0 |
2 |
4.0 +/- 0.08 | 5.5 +/- 0.08 |
1.6 | 1.0-1.5 |
1000 |
|
|
