GRLCBSL

PCB Support - Spacer - Locking Arrowhead, Reverse Locking Support, Push Spacer

Back to

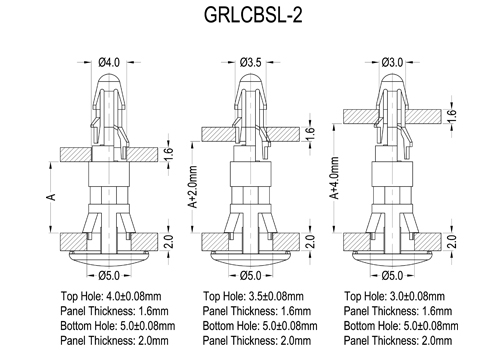

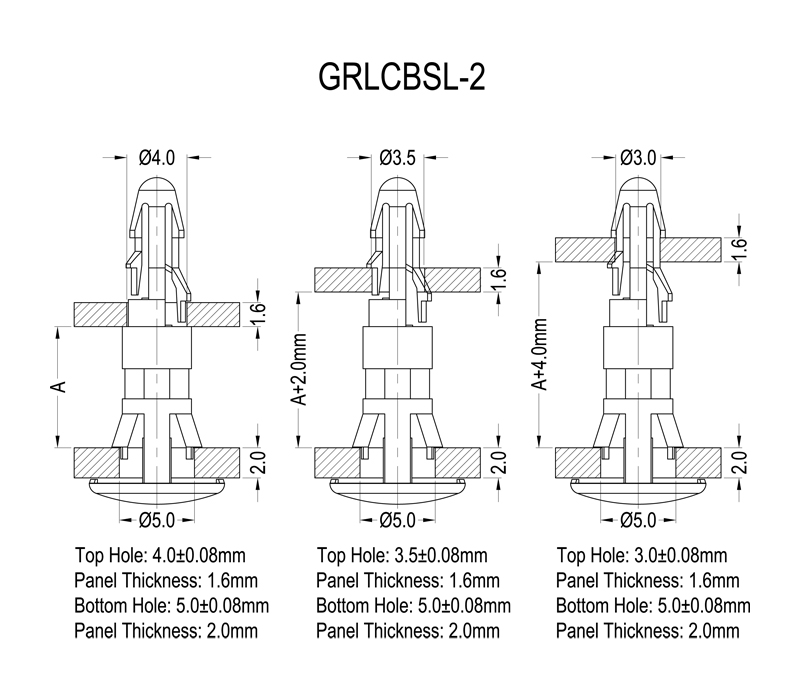

Sizes in mm
  • GRLCBSL.jpg
P/N. Article No. Cross-Ref. Material Color A FIG Top Hole Bottom hole Top Panel Thickness Bottom Panel Thickness Packing Unit PDF 3D
42565 GRLCBSL-2-6M-66B - PA66 UL94V2 Black 6,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42566 GRLCBSL-2-7M-66B - PA66 UL94V2 Black 7,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42567 GRLCBSL-2-8M-66B - PA66 UL94V2 Black 8,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42568 GRLCBSL-2-9M-66B - PA66 UL94V2 Black 9,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42569 GRLCBSL-2-10M-66B - PA66 UL94V2 Black 10,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42570 GRLCBSL-2-11M-66B - PA66 UL94V2 Black 11,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42571 GRLCBSL-2-12M-66B - PA66 UL94V2 Black 12,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42572 GRLCBSL-2-13M-66B - PA66 UL94V2 Black 13,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42573 GRLCBSL-2-14M-66B - PA66 UL94V2 Black 14,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42574 GRLCBSL-2-15M-66B - PA66 UL94V2 Black 15,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42575 GRLCBSL-2-16M-66B - PA66 UL94V2 Black 16,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42576 GRLCBSL-2-17M-66B - PA66 UL94V2 Black 17,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42577 GRLCBSL-2-18M-66B - PA66 UL94V2 Black 18,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42578 GRLCBSL-2-19M-66B - PA66 UL94V2 Black 19,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
42579 GRLCBSL-2-20M-66B - PA66 UL94V2 Black 20,0 - 3.0 +/- 0.08 5.0 +/- 0.08 1,6 2,0 1000
